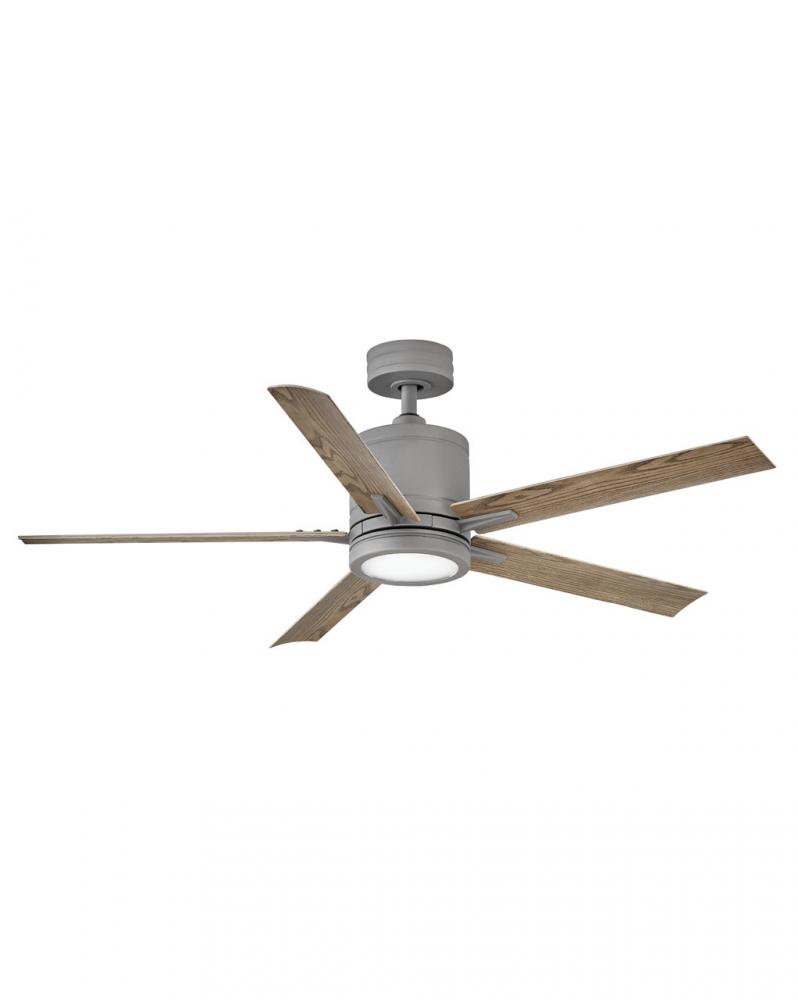

Vail 52" LED Smart Fan (902152FGT-LWD)
As a smaller companion to Vantage, Vail offers a transitional design with gently curved blades and an array of finish options, while its integrated LED lighting and DC motor technology deliver excellent energy efficiency. Vail is so versatile; it can be used for both indoor and outdoor spaces. Blades are included with every fan.
Product Specification
Item #
902152FGT-LWD
Dimensions
Height: 15.25"
Width: 52.00"
Length: 52.00"
Additional product details
Category
Exterior , Fans
Subcategory
Exterior Fans , Outdoor Fans
Finish
Gray , Miscellaneous
Style
Transitional
Option
Title 24 , Wet Rated , LED , Prop 65
Voltage
100-120
Lumens
1101-1600
Number of Blades
5 Blades
Kelvin
2501-3000
Location Rating
Wet Rated
Category
Fan
Finish
Graphite
Style
Transitional
Family
Vail
Glass
Etched Opal
Voltage
120 V
Number of Bulbs
1 Bulbs
Air Flow Efficiency
6973
Amperage
0.4
Blade Finish
Driftwood
Blade Pitch
14
Blade Span
52
Blades Included
Yes
Bulb Dimmable
Yes - CL Type Dimmer (SSL7A)
Bulb Hours
50000
Bulb Type
LED
Canopy
6 Dia. x 2.25 D
Introduction Date
01/01/2020
Kelvin
3000
Light Kit Included
Yes
Lumens / Light Output
1320
Material
Steel
Motor Size
DC-125
Motor Type
DC
Ship Carton Height
12
Ship Carton Length
23
Ship Carton Width
10
Ship Weight
19.62
Vendor Ship Method
Parcel
Weight
17.59
Airflow Avg
4582
AMPS Avg
0.23
Avg Energy Use
17
Blade Material
Composite
Blade Options Available
No
Blade To Ceiling Height
12.5
Blades Reversible
No
Bulb CRI
90
Bulb Included
Yes
Control Type
HIRO Control - 6 Speed Reversing
Country of Origin
China
Dual Mount
No
Efficiency Avg
263
Efficiency High
247
Energy Cost Avg
5
Energy Cost High
8
Energy Use High
28.3
Fan Control
Yes
Flush Mount Fan
No
Incandescent Equivalency
100 W
Light Kit Adaptable
No
Light Source
Integrated LED
Location Rating
Wet Rated
Max Wattage
16 W
Motor Fan Speed
6
Number of Blades
5
Operating Frequency
60
Prop 65 Description
CALIFORNIA PROP 65: WARNING: This product can expose you to chemicals including lead which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Receiver Included
Yes
Reversing Control
Yes
RPMS Avg
103
RPMS High
160
Safety Rating
ETL Approved, C-US Approved
Single Power Switch
Yes
Slope
20
Sloped Ceiling Adaptable
Yes
Stand By Power
0.2
Title 24
Yes
WIFI Control Included
Yes
WIFI Control Optional
No


Other Details:
  • Blades, controls, switches, capacitors and hardware carry a 1-year warranty
  • Fan Control included, HIRO Control - 6 Speed Reversing
  • Fans should be installed at a minimum of 7 feet from the floor
  • For more information on how to control your ceiling fan via the Hinkley Home Automation App, click here.
  • LED components carry a 5-year limited warranty
  • Merging the best of traditional and modern elements with a sophisticated and streamlined look
  • Motor carries a lifetime warranty
  • Suitable for use in wet (outdoor direct rain) locations as defined by NEC and CEC. Meets United States UL Underwriters Laboratories & CSA Canadian Standards Association Product Safety Standards
  • This item includes a 4.5" down rod. Other various lengths of down rods are available and sold separately to customize the installation height.
  • This item includes a light kit cover
  • This item may be hung on a sloped ceiling
  • WiFi compatible with included fan control
